BACKPACK
PRODUCT DESCRIPTION

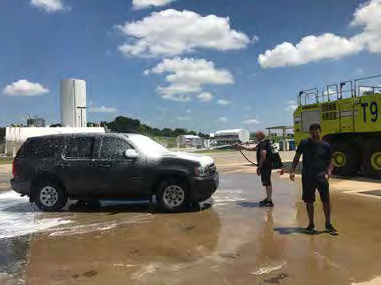

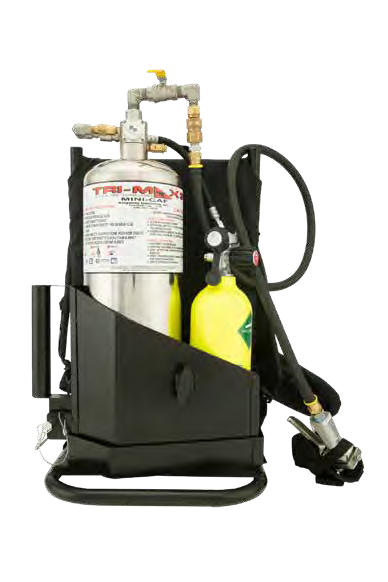

Introducing the CAF Backpack Sprayer for Designed specifically for first responders working in the toughest conditions, the CAF Pack is easily handled by a single person. This portable spray system is capable of producing a powerful 45 foot discharge of foam decontaminant. The patented foam technology of the backpack system paired with the patented formula provides superior decontamination capabilities. The CAF Pack is housed in a custom fabricated cabinet built for durability and portability. The CAF Pack’s center of gravity, holstered pistol grip and padded straps maximizes comfort and accuracy during emergency situations.
- Vessel Type: Stainless Steel
- Vessel Diameter: 7”
- Fill Diameter: 1 ½”
- Draw Tube: Standard Fire Extinguisher Draw Tube
- System Pressure Hose: ¼ x 7 ½ 3000 psi
- Plumbing: Brass and Steel Fittings
- Discharge Hose: 3/8 x x 20” Hard Rubber
- Expellant Type: Compressed Air or Nitrogen
- Expellant Cylinder Cap: SCUBA Type 6 cu ft 3000 psi
- Bottle Bracket: Welded Co-Polymer Base
- Regulator: SCUBA Type 140 psi
- Discharge Nozzle: Squeeze Type Plated Brass
- Discharge Tip: Brass Straight Tip
- Foam Compatibility: D7-DF200
- Adjustable to 30% / 50% / 70% Expansion Ratios
- Frame Construction: Welded Co-Polymer
SPECS AT-A-GLANCE
- Depth: 14 15/8” Height: 26” Width: 9 ½”
- Weight Empty: 20 lbs Weight Full: 46 lbs
- Tank Capacity: 3 Gallons (11 Liters)
- CAFS Output: 60 Gallons Max
- Discharge Range: 35 – 45 Feet (10 – 14 M)
